Horizontal Glass Lined Tank

Horizontal Glass Lined Tank
Horizontal Glass Lined Tank
Product Code : 13
Product Description

The aid of our hi-tech production set up has assisted our organization to offer excellent quality Horizontal Glass Lined Tank . The offered tank is used to store liquids, gases, chemicals, acids, etc. at an ambient pressure. The provided storage tank is manufactured with efficiency by our technocrats using high grade basic materials and modish techniques. This Horizontal Glass Lined Tank can be purchased from us at affordable prices.

Features:

  • Able to withstand high pressure
  • Non corrosive surface
  • Ruggedness
  • High strength

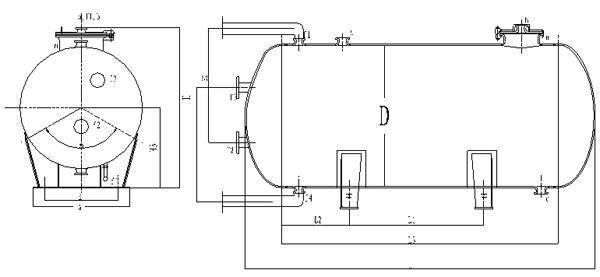

Technical specification

Type

W-3000

W-4000

W-5000

W-6300

W-8000

W-10000

W-12500

W-16000

W-20000

W-30000

W-50000

(L) Nominal Capacity

3000

4000

5000

6300

8000

10000

12500

16000

20000

30000

50000

(L) Actual Capacity

3337

4457

5550

7024

8910

11094

13921

17756

22332

33300

51605

Dinention mm

D

500

600

700

800

900

1200

1300

1300

1600

1750

1750

H1

600

700

800

900

1000

1300

1450

1450

1750

1900

1900

H2

706

816

918

1028

1130

1468

1622

1622

1964

2150

2150

H3

200

235

275

310

335

410

435

435

510

547

547

H

2146

2146

2300

2454

2604

2704

2704

2908

3112

3720

3720

L1

814

1794

1420

1474

1590

1880

2740

2840

2930

2370

4888

L2

320

320

360

390

420

450

470

500

550

630

630

L3

1454

2134

2140

2254

2430

2780

3680

3840

4030

3630

6148

L

2288

2968

3052

3246

3496

3900

4800

5080

5374

5282

7800

A

1060

1060

1120

1280

1360

1420

1420

1580

1720

2182

2180

K

900

900

960

1120

1200

1260

160

1380

1520

1940

1940

Glass Lined Nozzle

a

80

80

80

80

80

100

100

100

100

100

100

b

65

65

65

65

65

80

80

80

80

80

80

c

65

65

65

65

65

80

80

80

80

80

80

d

80

80

80

80

80

100

100

100

100

100

100

f

4-,65

4-,65

4-,65

4-,65

4-,65

4-,65

4-,65

4-,65

4-,65

4-,65

4-,65

m

300X400

300X400

300X400

300X400

300X400

450

450

450

450

450

450

Reference weight

1732

2076

2510

3200

3730

4740

5640

6700

8420

12700

18308
